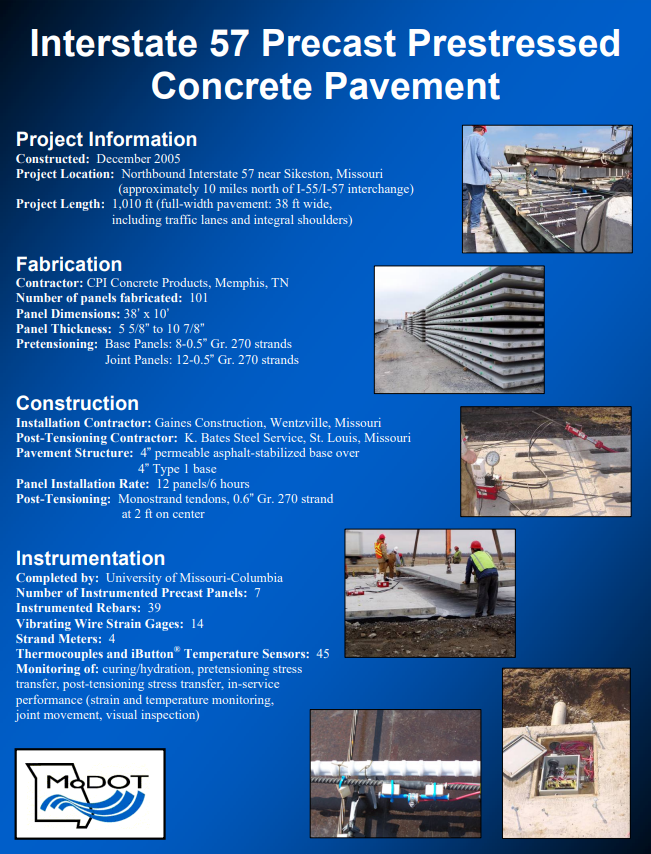

Precast prestressed pavement was used to replace a 45-year-old jointed reinforced concrete pavement that had reached serviceability failure on I-57 near Sikeston, Missouri.
The panels spanned the full 38 foot width of the roadway, including both traffic lanes and inside and outside shoulders. A rooftop pavement crown was cast into the surface of the panels by varying the thickness of the panels. The panels were installed over a permeable asphalt-treated base. Plain dowelled expansion joints were utilized for the joint panels and stressing was completed from blockouts in the joint panels rather than at central stressing panels.
Client: Missouri Department of Transportation (MODOT)
ADDITIONAL INFORMATION
- Completed: December 2005
- Project Length: 1,000 ft (2 lanes plus shoulders)
- Panel Dimensions:10′ x 38′ x 5.75″-11″
- Number of panels: 100
- Number of post-tensioned sections: 4 @ 250′
- Panel Installation Rate: 12 panels/6 hours
- Features: Pavement crown cast into the panel surface. Non-continuous keyways between panels.
